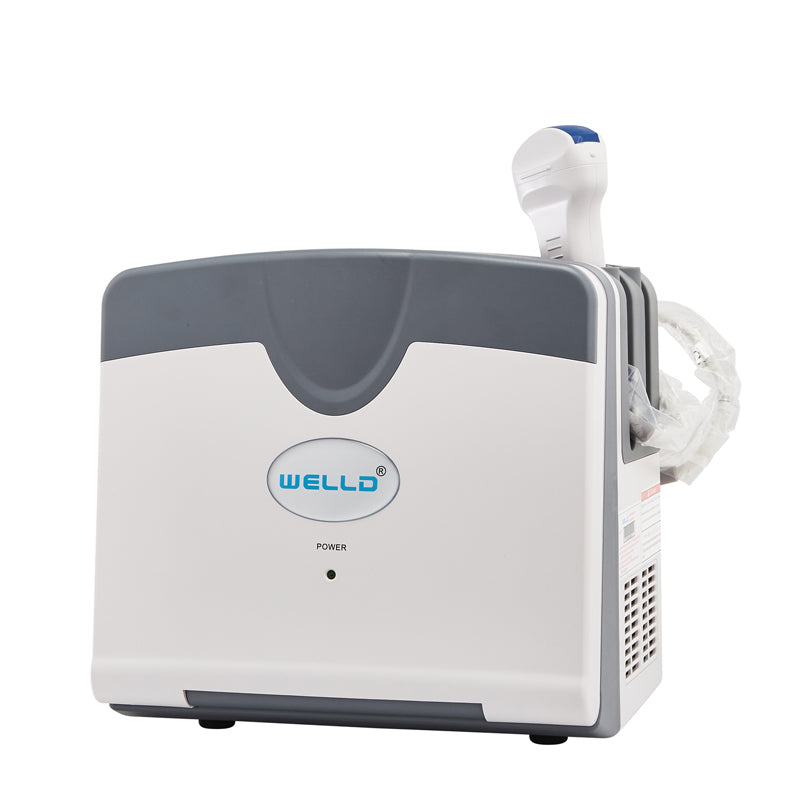

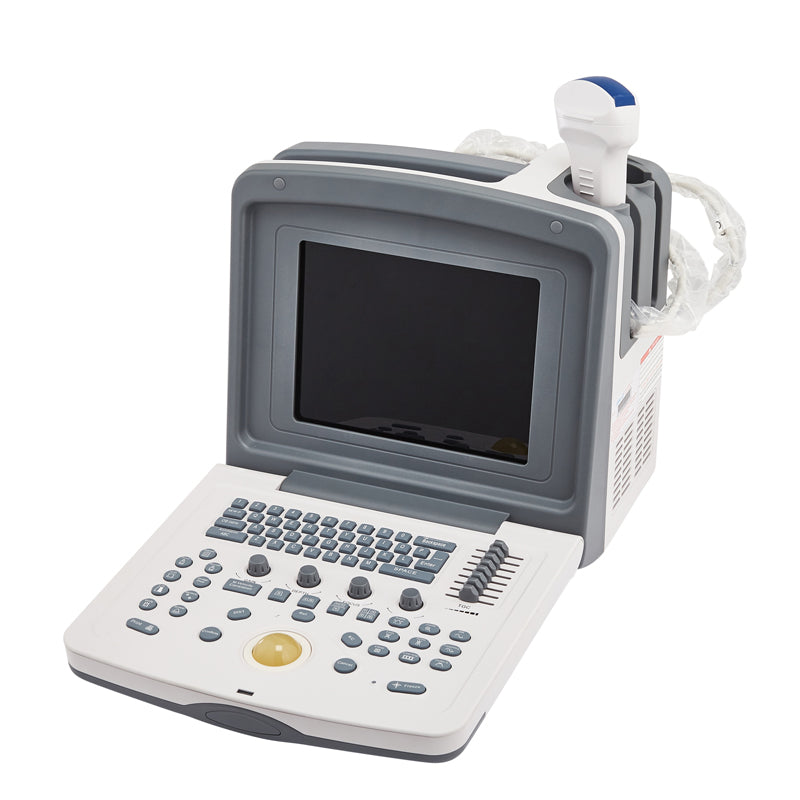

Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz
Ultrasound 9618 Vet 6.5MHz

Ultrasound 9618 Vet 6.5MHz

Regular price R 38,800.00 Sale

Lead time on order will be 6-8 weeks.

Features:

With revolutionary technology of full digital beam-forming, WED-9618V, provides the excellent image quality with high resolution and definition. The selectable multiple transducers, powerful measuring and analysing software packages to extend its application to broader fields.

Technical Specifications

  • Scanning mode: Convex/Linear
  • Display modes: B,B+B,B+M,M,4B
  • Scanning depth: 60-130mm (6.5MHz Rectal Linear)
  • Cine-loop: 511 frames (Max)
  • Image permanent storage: 32 frames
  • Image conversion: up/down, left/right. black/white
  • Local zoom: 2 times both in real-time and frozen
  • Measurement: Distance, circumference, area, volume, EF rate, heart rate
  • OB measurements:        Equine -- GA (GSD)

                                                 Bovine – GA (BL,SL,HL)

                                                 Swine --- GA (HL)

                                                 Sheep – GA (USD)

                                                 Cat ----- GA, EDD (HD,BD)

                                                 Dog ---- GA, EDD (GSD,CRL,HD,BD)

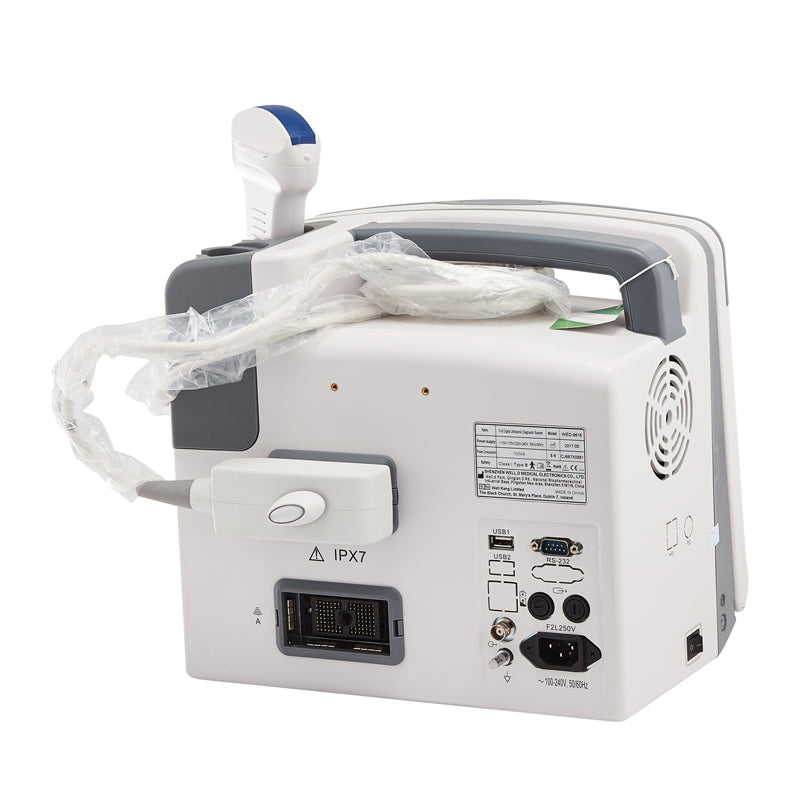

  • Probes connector: 2
  • Port: PAL-D video out, USB 2.0
  • Monitor: 10 inch SVGA
  • Comment: date & time, name, sex, age. doctor, hospital, annotation (whole screen comment input)

 Standard Configuration

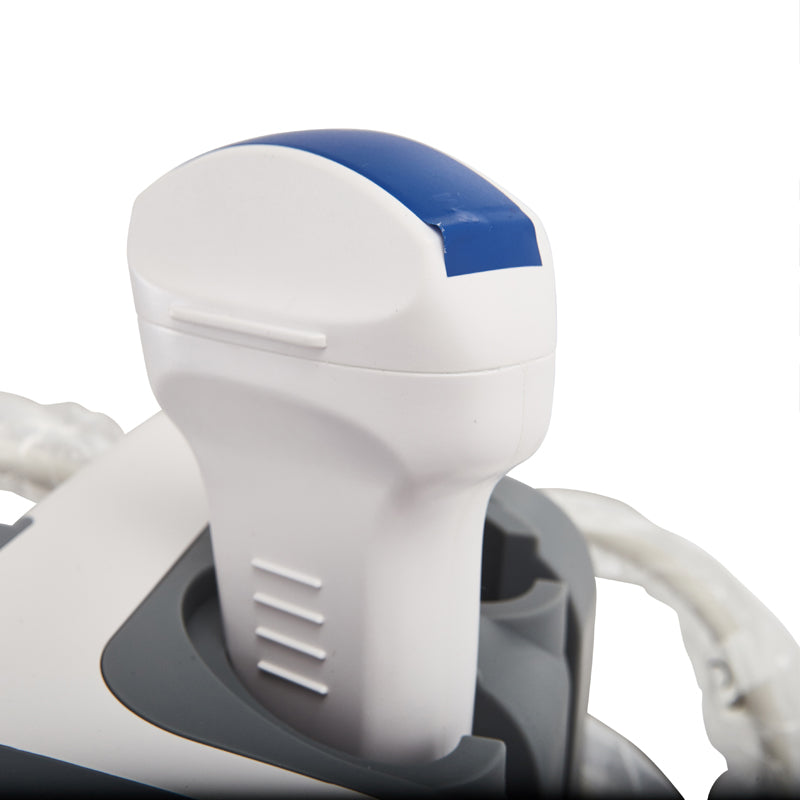

1 x 6.5MHZ Rectal Linear Probe

 Options:

  1. 5MHz Linear
  2. 0MHz Micro-Convex
  3. 5MHz Convex
  4. Cart
  5. Video printer

Please check stock availability
