Description
SPECIFICATIONS:
Features:

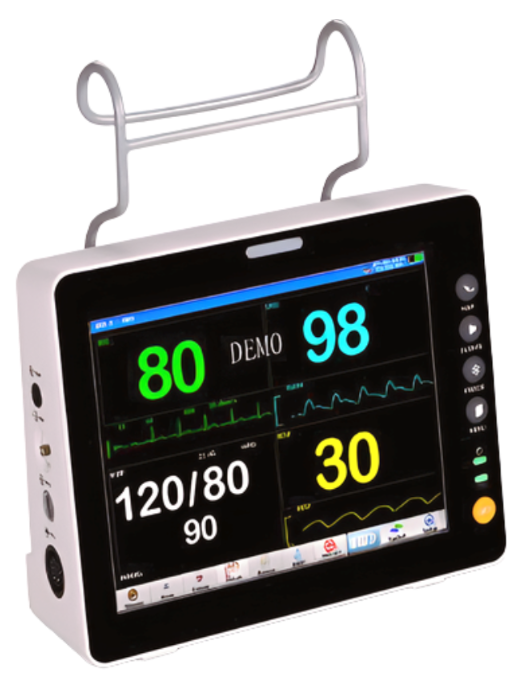

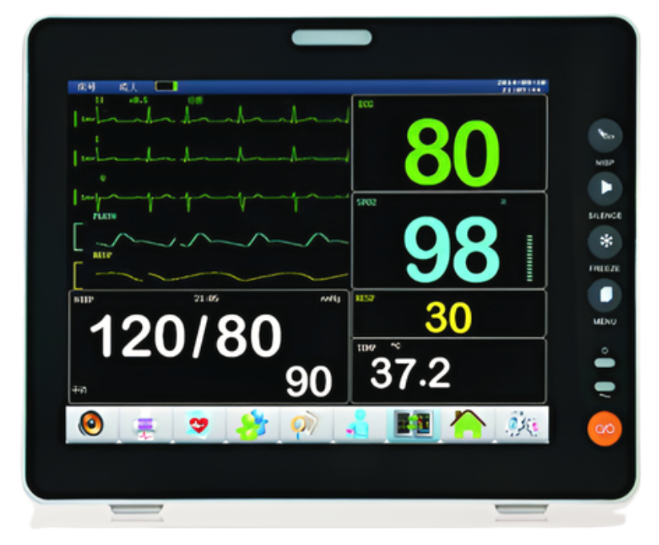

- 8" colour TFT-LCD screen.
- Monitoring 6 parameters: ECG, NIBP, RESP, SpO2, Pulse Rate and Temp.
- Optional: CO2, touchable screen.
- Waterproof design appearance, low power consumption, without air fan and silence.
- 15 type arrhythmic analysis, 7-lead ECG waveform display in phase, 15 type drug calculation and titration table.
- Efficient resistance to interference of defibrillator and electrosurgical cautery, respiration can choose I/II, meet requirement of operation ward.
- Use digital SpO2 technology, can test for 0.1% weak, high accuracy.
- Anti-ESU, anti-defibrillator, RA-LL impedance respiration, digital filtering.
- Double over-pressure NIBP protect, temperature drift.
ECG:

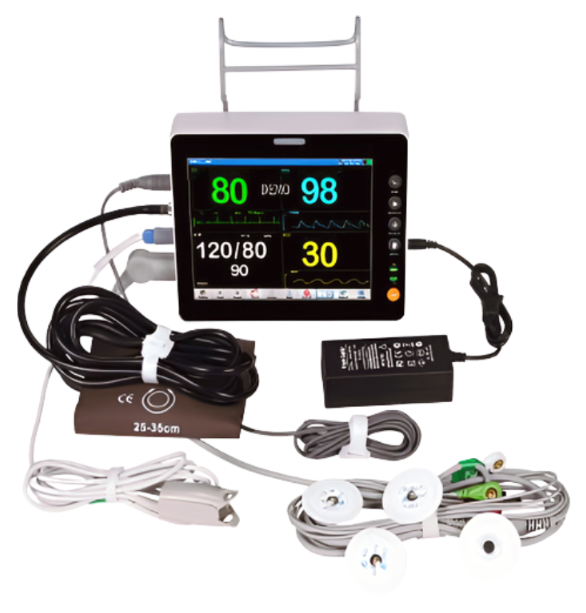

- Input: Whole lead ECG cable, standard AAMI cable coonector.
- Lead Selection: I, II, III, avR, avL, avF, C (V1, V2, V3, V4, V5, V6).
- Gain Selection: x1/4, x1/2, x1, x2.
- Sweep Speed: 12.5, 25, 50mm/s.
- Bandwidth:
- 0.55-100Hz (for diagnosis).
- 0.5-40Hz (for monitor or operation).
- Calibration signal: 1mV.
- Protection: Against electrosurgical interference and defibrillation.
NIBP:
- Method: Oscillometric.
- Mode: Manual, Auto, STAT.
- Measuring interval in Auto mode: 1-480minute.
- Measuring interval in STAT mode: 5min.
- Measuring type: SYS, DIA, MEAN.
- Measuring Range:
- SYS: 40-270 mmHg.
- DIA: 10-215 mmHg.
- MEAN: 20-235 mmHg.
- Resolution: 1mmHg.
- Over-pressure protection:
- Adult 300mmHg.
- Child 240mmHg.
- Neonate 150mmHg.
Heart Rate:
- Measuring Range: 15-300bpm.
- Accuracy: ±1bpm.
- Resolution: 1bpm.
- Alarm mode: Audible and visual alarm.
Temperature:
- Measuring range: 0-50°C.
- Resolution: 0.1°C.
- Accuracy: ±0.2°C.
RESP:
- Method: Resistance on chest.
- Measuring Range: 7-120bpm.
- Gain Selection: x1/2, x1, x2, x4.
Oxygen Saturation (SpO2):
- Measuring range: 0-100%
- Accuracy: ±2% (70-100%), 0-69% unspecified.
Operation Environment:
- Temperature: 0-45°C.
- Humidity: 30-85%. (non-condensing).
Power Option:
- AC Power:
- 100-240V
- 50-60Hz
- 10VA
