Description
SPECIFICATIONS:

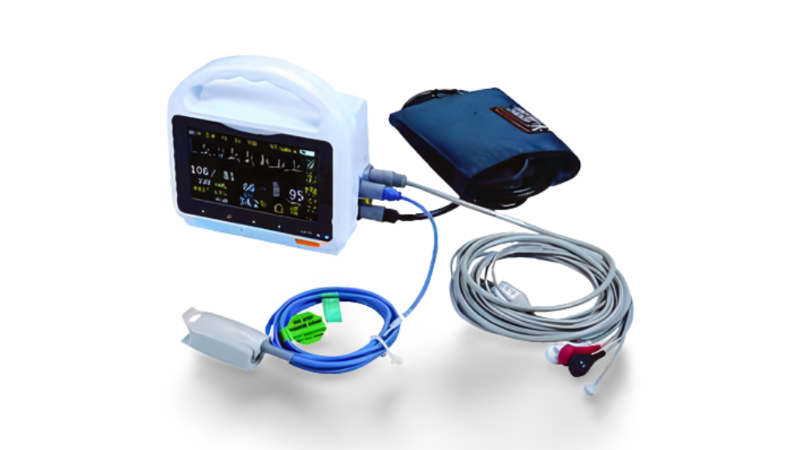

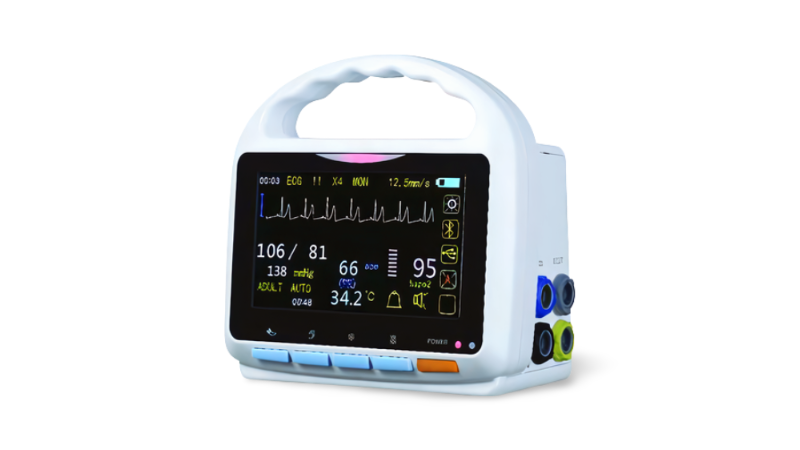

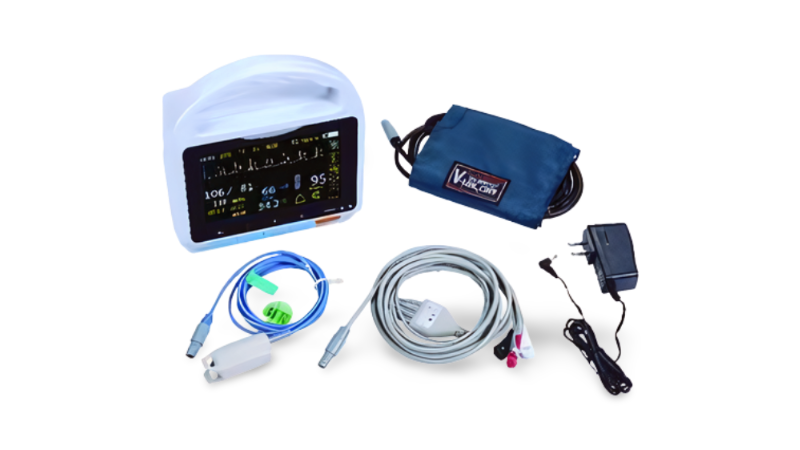

- JR2000A multi-parameter patient monitor has super high quality and very competitive price which independently designed by Jerry Medical.
- All in one designed module with 5 standard parameters: ECG, NIBP, SPO2, Pulse Rate and Temperature.
- Free matched two sets advanced software is for data downloading and tele-monitoring, and has convenient and rapid Bluetooth printer can print data and ECG waveform.
- This machine can meet all requirements and meet requirements of hospital and other departments in emergency treatment, first-aid, recue, etc.
Functions:

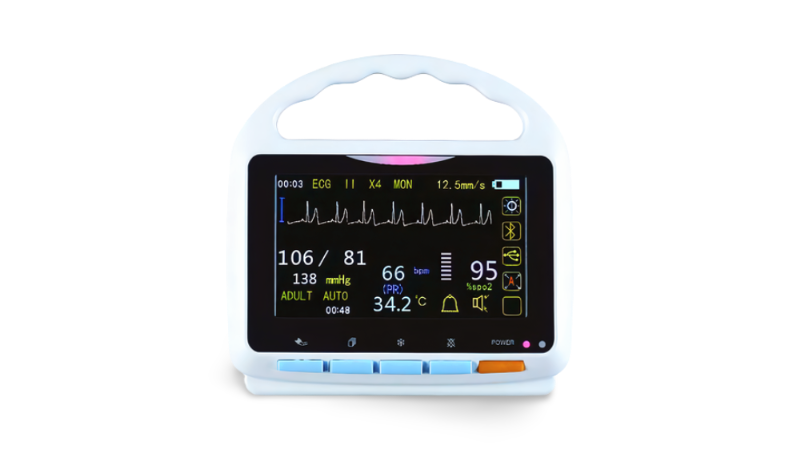

- Touch screen, 5.0" colour TFT-LCD, simple for operating, quickly and accurately measure the data.
- Build-in rechargeable li-battery, up to 15hours running time, support AC and DC power.
- Adjustable audio and visual alarms, and sensor off alarm.
- Long time monitoring and sleeping monitoring.
- Easy to carry, suitable for ambulance center.
- Storage and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List.
- USB and bluetooth data upload.
- Big font screen interface is easy to observe.
- Back light can be adjusted.
- Free advanced software.
ECG:
- Input: 5-lead ECG cable, standard AAMI cable connector.
- Lead selection: I, II, III, avR, avL, avF, C.
- Gain selection: x1, x2, x4, x8.
- Sweep speed: 12.5mm/s, 25mm/s, 50mm/s.
- Bandwidth:
- 05Hz-40Hz (for monitor or operation).
- 0.05Hz-100Hz (for diagnosis).
- Calibration signal: 1mV.
- Protection: Against electrosurgical interference and defibrillation.
Heart Rate:
- Measure range: 20bpm-300bpm.
- Accuracy: ±1bpm.
- Resolution: 1bpm.
- Alarm mode: Audible and visual alarm.
Oxygen Saturation (SpO2)
- SpO2
- Range: 0%-100%.
- Accuracy: ±2%(70%-90%), ±3%(70%-89%), unspecified (<70%).
- Pulse Rate:
- Range: 20bpm-300bpm.
- Accuracy: ±1bpm.
Temperature:
- Measuring range: 0°C-50°C.
- Resolutions: 0.1°C.
- Accuracy: ±1°C.
NIBP:
- Method: Oscillometric.
- Mode: Manual, Auto, STAT.
- Measuring interval in Auto Mode: 1, 2, 3, 4, 5, 10, 15, 20, 30, 60 (min).
- Measuring period in STAT mode: 5minutes.
- Measuring type: SYS, DIA, MEAN.
- Resolution: 1mmHg.
- Over - pressure protection: Yes.
Operating environment:
- Temperature: 0°C-45°C.
- Humidity: 30°C-85°C (non-condensing).
Power option:
- Build in Li-ion rechargeable battery.
- 3.7V/7200mAH.
- AC power: 100V-240V, 50Hz-60Hz, 5VA
