Description
Features:

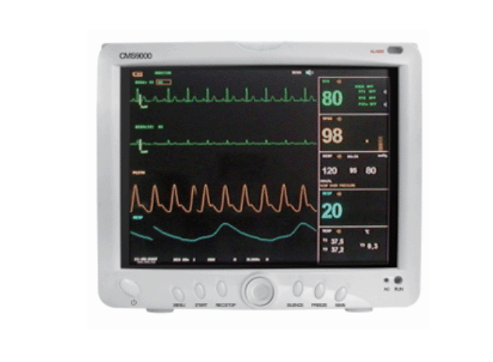

- 12.1" Screen, Colour TFT SCreen, waveform up to 8 channels.
- Light and portable with built-in rechargeable battery.
- Up to 10 kinds of monitor parameters.
- Arrhythmia analysis, pace marker detection and S-T Segmentanalysis.
- 72 Hour storage and review of trend grams and tables, 40 second review of olographic waveforms.
- Built-in recorder - optional.
- All-round monitor of adult, pediatric and neonatal.
- Electrosurgical unit and defibrillation protected.
Specifications:
- Display: Colour TFT Screen.
NIBP
- Method: Oscillometry.
- Operation Modes: Manual/Automatic/STAT
- Measurement unit: mmGh/kPa selectable
- Measurement types: Systolic, Diastolic, Mean
- Measurement range: Adult 10-270mmHG
- Overpressure protection: Yes
- Resolution: 1mmHg
- Accuracy: Mean error and standard deviation per ANSI/AAMI SP-10
- Alarm: Systolic, Diastolic, Mean
SP02
- Measurement range: 0-100%
- Accuracy:±2 digit (70~100%) 0~69% unspecified
- Alarm range: 0-100%
ECG: 5-lead or 3-lead selectable
- Input: 5 lead: RA, LA, RL, LL, V or R, L, N, F, C
- Lead selection: I, II, III avr, avl, avf, vx, CAL
- Gain selection: 12.5mm/s, 25mm/s, 50mm/s
- Accuracy:±1bpm or±1%, whichever is greater.
- Protection: Withstand 4000VAC/50Hz voltage in isolation against electrosurgical and defibrillation.
- Calibration Signal: 1mV±5%
- Operation modes: Dianostic, Monitor, Surgery
- Alarm range: 15-300bpm
- Peadiatric/Neonatal: 15-350bpm
- Alarm range: -2.0mV~2.0mV
- S-T detection: Yes, Arrhythmia analysis: Yes
- Alarm: Yes, audible and visual alarm, alarm events recallable.
Respiration
- Method: RA-LL impedance
- Peadiatric/Neonatal: 6-150rpm
- Alarm range: 6-120rpm
- Peadiatric/Neonatal: 6-150rpm
- Apnea Alarm: Yes
Temperature
- Resolution: 0.1°C
- Channel: Dual-channel
- Alarm range: 0°-50°C
Option:
ETC02
- Measurement Mode: Side-stream or mainstream
- Measurement range: EtC02: 0-99mmHg
- Accuracy: CO2 concentration
- Apnea Alarm: Yes
CO
- Method: Thermo-dilution
- Measurement range: CO0.1-20Lit/min
IBP
- Channel: 2 channels
- Pressure transducer: Sensitivity: 5(mV/V/mmHg)
- Transducer sites: ART, PA, CVP, RAP, LAP, ICP
- Alarm range: -10~ 300mmHG
